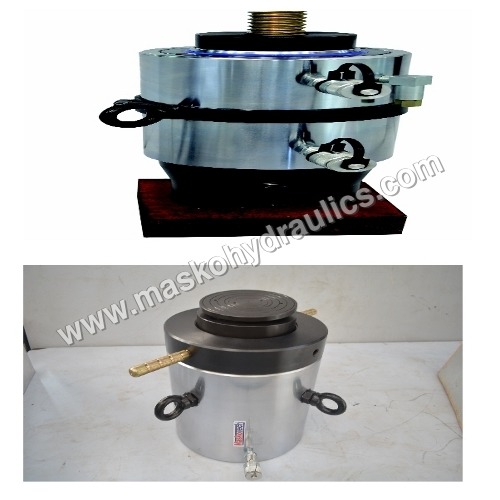

Lock Nut Cylinder

9000 INR

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Lock Nut Cylinder Price And Quantity

Price 9000 INR

Product Description

Over the long year, we are offering our clients a superior quality Lock Nut Cylinder that is used in plumbing applications. This is manufactured with high precision by inculcating the finest quality materials with the help of contemporary techniques. The cylinder provided by us is stringently checked by our deft experts before delivering at our valuable customers. Apart from that, we offer this Lock Nut Cylinder in diverse dimensions and sizes as clients' specific requirements.

Provided Lock Nut Cylinders are offered with mechanical load locking, optimal lifting capacity and an efficient stroke length. Due to the smart return-plungers, these cylinders are hardly higher in comparison with the gravity return lock-nut cylinders. The cylinders can be utilized in all positions and are provided with flat saddles. The structure of the products is capable to prevent the damage and is assembled with replaceable parts. Having significant advantages in terms of safety, sustainability and maintenance, the Lock Nut Cylinders are equipped with a smart return-plunger, the construction of which can increase the pressure surface, consequent in increased power with a smaller diameter.

Technical Specification

capacity	stroke	model with Plain saddle	model with spher-ical saddl-e	Effective Area	Oil Cap.	Close-d ht. with Plain saddle	Closed ht. with sph. saddle	cylinder OD	Bore Dia.	Ram Dia.	Plain Saddle Dia.	Spherical saddle Dia.	wt. (Approx.) (Plain saddle)	wt. (Approx.) (Sph. saddle)
Ton (kN)	(mm)	MT	MT	cm.sq.	(cc)	A(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	E(mm)	(KG)	(KG)
10(111)	150	-	-	15.9	239	245	255	60	45	40	34	35	4.5	4.7
15(167)	150	-	-	23.8	356	250	265	70	55	50	43	43	6.5	6.7
20(218)	150	-	-	31.2	468	260	275	80	63	55	48	48	9	9.3
25(270)	150	-	-	38.5	577	270	285	90	70	55	50	48	11.3	11.7
30(309)	150	-	-	44.2	663	275	290	100	75	600	55	55	14.5	27
50(550)	150	-	-	78.5	1178	290	305	130	100	80	75	74	26.5	27
75(792)	150	-	-	113.1	1696	305	320	155	120	95	89	88	37	38
100(1077)	150	-		153.9	2309	320	325	180	140	110	103	100	56	57
150(1589)	150	-	-	227	3405	325	350	220	170	140	133	130	86	88.5
200(2199)	150	-		314.2	4712	340	365	255	200	160	152	150	110	114
250(2661)	150	-	-	380.1	5702	350	38	280	220	180	170	165	134	139
300(3167)	150	-	-	452.4	6786	370	405	310	240	200	192	180	176	183.5
400(4008)	150	-	-	572.6	8588	405	445	350	270	220	212	212	240	252
500(4948)	150	-	-	706.9	10603	NA	465	400	300	250	NA	230	NA

Details

Capacity	stroke	Model	Effective Area	Oil cap.	Closed Ht.	Cylinder OD	Bore Dia.	Ram Dia.	Saddle Dia	Wt. (Approx)
Tons (kN)	(mm)	MT	cm.sq.	(cc)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	(kg)
600(5987)	150	GLTS 600-150	855.3	12829	495	430	330	275	260	495
800(7939)	150	GLTS 800-150	1134.1	17012	535	505	380	310	290	731
1000(9930)	150	GLTS 1000-150	1418.6	21279	570	560	425	350	330	970
1500(15154)	150	GLTS 1500-150	2164.8	32472	660	705	525	450	400	1822
2000(20458)	150	GLTS 2000-150	2922.5	43837	750	810	610	525	495	2688
