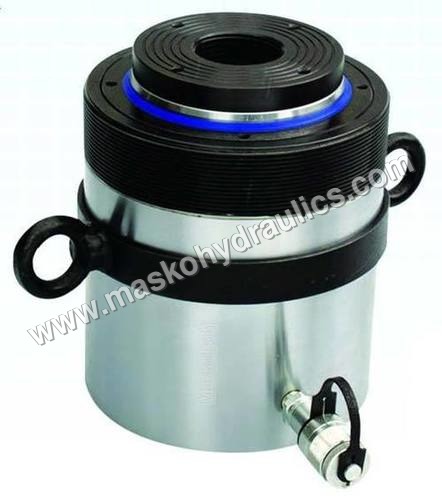

General Purpose Threaded Ram Jack

10000 INR

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

General Purpose Threaded Ram Jack Price And Quantity

Price 10000 INR

Product Description

With the help of our team of technical professionals, we are involved in offering optimum quality General Purpose Threaded Ram Jack. This is ideally used for lifting of girders, building foundations, ship building, Testing of concrete structures, handling of heavy duty machineries, steel fabrication,etc. It is a perfect choice to use in low clearance confined area. In addition, this General Purpose Threaded Ram is widely demanded for its robust structure and long service life.

Features/Applications:

1) Standard multi purpose application jacks.
2) Spherical saddle for 500 t and above; optional for lower capacities.
3) Spring return mechanism upto 500 t capacity, Load return for 600 t and above.
4) Ideally suited for application requiring sustained load holding in infrastructure projects, heavy industries.

Application Areas:

Construction industries
Power plants
Steel plants
Railways
Wind mill
Ship building or offshore industries
Mining industries
Heavy engineering & process industries
Cement industries

Technical Details:

MT - GST Series: S - Single Acting Spring Return T - Threaded Ram
MT - GSTS Series: S - Spherical Saddle (Tilting Angle 5 Degree Max.)
Tons (kN)	(mm)	MT	MT	cm. sq.	(cc)	A (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	E (mm)	(kg)	(kg)
10 (111)	150	GST 10-150	GSTS 10-150	15.9	239	245	255	60	45	40	34	35	4.5	4.7
15 (167)	150	GST 15-150	GSTS 15-150	23.8	356	250	265	70	55	50	43	43	6.5	6.7
20 (218)	150	GST 20-150	GSTS 20-150	31.2	468	260	275	80	63	55	48	48	9	9.3
25 (270)	150	GST 25-150	GSTS 25-150	38.5	577	270	285	90	70	55	50	48	11.3	11.7
30 (309)	150	GST 30-150	GSTS 30-150	44.2	663	275	290	100	75	60	55	55	14.5	15
50 (550)	150	GST 50-150	GSTS 50-150	78.5	1178	290	305	130	100	80	75	74	26.5	27
75 (792)	150	GST 75-150	GSTS 75-150	113.1	1696	305	320	155	120	95	89	88	37	38
100 (1077)	150	GST 100-150	GSTS 100-150	153.9	2309	320	325	180	140	110	103	100	56	57
150 (1589)	150	GST 150-150	GSTS 150-150	227	3405	325	350	220	170	140	133	130	86	88.5
200 (2199)	150	GST 200-150	GSTS 200-150	314.2	4712	340	365	255	200	160	152	150	110	114
250 (2661)	150	GST 250-150	GSTS 250-150	380.1	5702	350	385	280	220	180	170	165	134	139
300 (3167)	150	GST 300-150	GSTS 300-150	452.4	6786	370	405	310	240	200	192	180	176	183.5
400 (4008)	150	GST 400-150	GSTS 400-150	572.6	8588	405	445	350	270	220	212	212	240	252
500 (4948)	150	NA	GSTS 500-150	706.9	10603	NA	465	400	300	250	NA	230	NA	363
