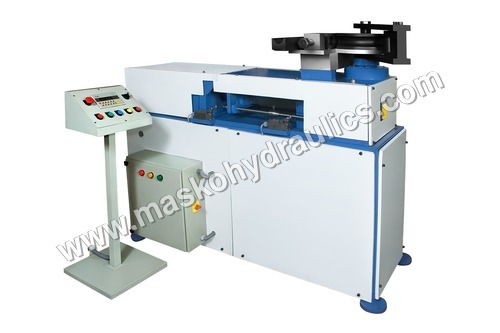

Motorized Pipe Bending Machine

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Motorized Pipe Bending Machine Price And Quantity

Minimum Order Quantity 1 Unit

Motorized Pipe Bending Machine Trade Information

Supply Ability 15 Unit Per Week
Delivery Time 5-7 Week

Product Description

Aided by developing techniques and hi-tech equipment, we are able to manufacture and export a wide gamut of Pipe Bending Machine. This finds their applications in electrical, construction, textile and cement industry. It is used to permanently form pipes or tubing. Under the observation of our team, this is manufactured using high quality materials. Besides, this Pipe Bending Machine is widely preferred due to its smooth transition and light weight structure.

Provided CNC Pipe Bending Machine are the simple, strapping and semi automated power functioned machines, which are suitable for the fabrication work needed in assorted industries. Used for the procedure of bending, these are ideal for the production of greenhouses, railings, flanges, large structures for construction and all kinds of circular figures in assorted small & large sections. Made of steel, these are featured with treated & rectified axis, three traction rollers, pinion transmissions and various other parts & components. Offered Pipe Bending Machines are the linear motor-driven machines, appreciated for their pace in operation.

Technical Specifications:

Capaity	Model : MTY -3	Model : MTY -5	Model : MTM -3
Capaity	Model : MTY -3	Model : MTY -5	Model : MTM -3

Tube OD X Thickness	38 m.m x 2.5 m.m	50 m.m x 2.5 m.m.	38 m.m x 2.5 m.m
Square Tube	30 x 30 x 2 m.m	40 x 40 m.m. X 2	30 x 30 m.m. X 2
Rectangular Tube	30 x 30 x 2 m.m.	30 x 35 x 4 m.m.	30 x 35 x 2.5 m.m.
Higher Radius	On Request	On Request	On Request
Minimun Radius Possible	2.5 D (D = Tube Dia)	2.5 D (D = Tube Dia)	2.5 D
Bend Angle	5 to 180 * Degree	5 to 180 * Degree	5 to 180 * Degree
Bending Speed	3.5 RPM Approx	3.5 RPM Approx	3.5 RPM Approx
Bending Direction	Anticlockwise	Anticlockwise	clockwise
Bend Accuracy	+0.5º	+0.5º	+0.5º
Tube Indexing	Manual	Manual	Manual
Tube Positioning	Manual	Manual	With Suitable Fixturing
Length Setting	Manual	Manual	Manual
Tube Holding Control	Manual or Voice , Semi Automatic with Dog Setting for Angle	Manual or Voice , Semi Automatic with Dog Setting for Angle	Automatically
Production Rate (Appox)	600 Bends / shift	600 Bends / shift	600 Bends / shift
Weight	600 Kg. Approx	750 to 500 Kg. Approx	900 Kg.
Size	1780 L X 410 D X 1050 H	460 X 460 X 760
Motor	3 HP	5 HP	3 HP
Oil	70 Ltr. (68 No.)	120 Ltr. (68 No.)	120 Ltr. (68 No.)

Section Bending Machine

Capacity	Size

Pipe	2-(Sch.40)/60(4)mm
Round Tube	2.75-(.083-)/70(2.1)mm
Square Tube	2'(.120')/50(3)mm
Angle Iron	2'(.250')/50(6.3)mm
Solid Square	1.375'/35mm
Solid Round	1.5'/38mm
Flat Bar
Easy Way	4'(.75')/101(19)mm
Hard Way	3.25'(.375')
Roll Adjustment	Hydraulic
Pinch	Single
Driven Rolls	2
Motor	3hp
Power Requirement	3ph
Shiping Weight	300k
