Separatable Hydraulic Puller

10000 INR/Unit

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Separatable Hydraulic Puller Price And Quantity

Minimum Order Quantity 1 Unit
Price 10000 INR/Unit

Separatable Hydraulic Puller Trade Information

Supply Ability 15 Unit Per Week
Delivery Time 5-7 Week

Product Description

We are certified company, engaged in manufacturing and supplying supreme quality assortment of Separatable Hydraulic Puller. Our range of hydraulic puller includes Inbuilt Hydraulic Puller and Separatable Hydraulic Puller. Through the hand of deft professionals, the is manufactured using optimum quality materials and advanced techniques. It is appreciated for sturdy construction, high strength, superb finish and dimensional accuracy. Moreover, we offer Separable Hydraulic Pullers in several sizes at industry leading prices.

Hydraulic Puller Attachments :

Max. Working Pressure : 700 bar

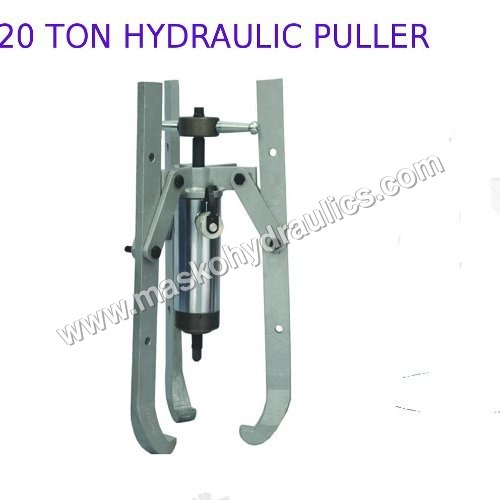

Jaw puller Attachment :

Capacity : 10-100 ton

Warning : Do not exceed 50% of cylinder capacity when using two jaw puller attachment.

Features / Application of Separatable Hydraulic Puller :

Two and three jaw design
High Strength drop forged steel jaws
Jaws with adjustable reach and spread
Maintenance od workshop equipment. Removal of wheels, pulleys, gears, sleeves and other press fit assemblies

Hydraulic Puller Attachments :

Max. Working Pressure : 700 Bar

Bearing Puller Attachment :

Capacity : 10-50 Ton

Features / Application :

Knife edge Gripping
Adjustable Spread by means of tie rod
High strength forged steel construction
Used for removal of bearing from shaft assemblies having less clearance ,with push puller attachment

Internal Puller Attachment :

Capacity : 10-30 ton

Features / Application :

Adjustable gap with turn buckle mechanism
High strength forged steel construction
Maintenance of workshop equipment. Finds
Special use in removal of bearing outer races, bushes, press fitted in housing

MTHP -JPA Series
Model	No. of Jaws	Capacity	Cylinder Model	Stroke	Reach A	Spread
MTHP		(tons)	MT	(mm)	(mm)	(mm)
JPA 10-2	2	10	RSHC 10-100	100	295	395
JPA 10-3	3	10	RSHC 10-100	100	295	395
JPA 20-2	2	20	RSHC 20-100	100	260	425
JPA 20-3	3	20	RSHC 20-100	100	260	425
JPA 30-2	2	30	RSHC 30-100	100	380	610
JAP 30-3	3	30	RSHC 30-100	100	380	610
JPA 50-2	2	50	RSHC 50-100	100	750	855
JPA 50-3	3	50	RSHC 50-100	100	750	855
JPA 100-2	2	100	RSHC 100-100	100	1040	1230
JPA 100-3	3	100	RSHC 100-100	100	1040	1230

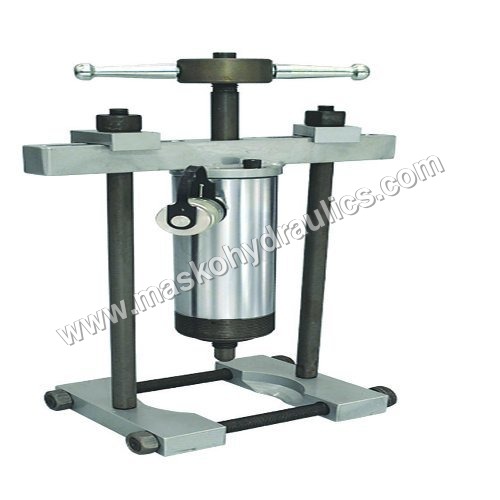

MHTP - PPA Series
Model	Capacity	Cylinder Model	Stroke	Reach 'A' (mm)			Spread 'B' (mm)		End Threads 'C'
MTHP	(tons)	MT	(mm)	Short	Medium	Long	Min	Max	(mm)
PPA -10	10	RSHC 10-100	100	NA	120	220	105	260	M16 X 2P
PPA -20	20	RSHC 20-100	100	70	240	360	150	320	M16 X 2P
PPA -30	30	RSHC 30-100	100	NA	230	485	160	410	M24 X 1.5 P
PPA -50	50	RSHC 50-100	100	NA	335	585	190	410	M32 X 2P

Details :

Higher capacity and customized solution on request.
specifications are subject to change due to continual improvement.
Capacity and stroke specified are maximum safe limits. As safe practice, use at 80% of rating.

MTHP-BPA Series

Model MTHP	Capacity (tons)	'A'(mm) Min max	B' (mm)	Tap 'C' (mm)
BPA-10	10	45 140	112	M16 X 2P
BPA-20	20	68 185	150	M16 X 2P
BPA-30	30	45 275	245	M24 X1.5 P
BPA-30	50	65 270	328	M32 X2P

Warning : Do not exceed 50% of Cylinder capacity when using bearing puller attachment

MTHP -IPA series

Model

MTHP

Capacity

tons

(mm)

'B' mm()

Min. Max

Tap ' C'

(mm)

IPA-10

100

50 150

M20 X 205P

IPA-20

100

50 150

M27 X 3P

IPA-30

105

75 225

M33 X 3P

Warning : Do not exceed 25% of Cylinder capacity when using internal puller attachment.

Jacks and Hand Pumps Supplied with Puller Attachment

Capacity (TON)	Stroke (mm)	Model MT	Suitable Pump MT
10	100	RCHS 10-100	SHP-1P4-2-1.4
20	100	RCHS 20-100	SHP-1P4-2-1.4
30	100	RCHS 30-100	SHP-1P4-2-1.4
50	100	RCHS 50-100	SHP-2P4-2-5
100	100	RCHS 100-100	SHP-2P4-2-5-E
