Without Ratchet Cable Drum Screw Jack

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Assisted by a competent team, our firm is betrothed in manufacturing and supplying the assorted range of Without Ratchet Cable Drum Screw Jack. The offered jack is widely demanded in several chemical, water treatments, petrochemical and many other industries. Our offered jack is manufactured by utilizing premium grade materials with the help of latest techniques. This is available in available in diverse sizes and customized options in accordance to the clients' requirements. Moreover, this Without Ratchet Cable Drum Screw Jack can be purchased from us at market leading price.

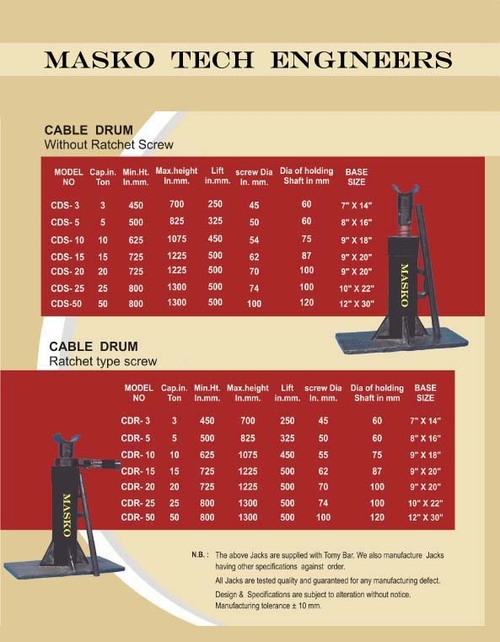

Technical Specification:

Technical Specifications
Model No	Cap.in. Ton	Min. Ht. in.mm.	Max. Height in.mm	Lift. In.mm.	Screw dia in.mm	Dia of holding shaft in mm	Base size
CDS-3	3	450	700	250	45	60	7" x 14"
CDS-5	5	500	825	325	50	60	8" x 16"
CDS-10	10	625	1075	450	54	75	9" x 18"
CDS-15	15	725	1225	500	62	87	9" x 20"
CDS-20	20	725	1225	500	70	100	9" x 20"
CDS-25	25	800	1300	500	74	100	10"x22"
CDS-50	50	800	1300	500	100	120	12"x30"
