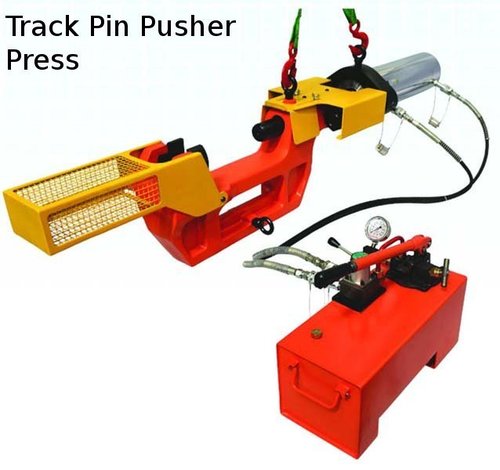

Hydraulic Track Pin Pusher
200000.00 - 1000000.00 INR/Unit
Product Details:
X
Hydraulic Track Pin Pusher Price And Quantity
- 1 Unit
- 200000.00 - 1000000.00 INR/Unit
Hydraulic Track Pin Pusher Trade Information
- 15 Unit Per Week
- 5-7 Week
Product Description
Due to our proficiency and deep knowledge in the industry, we are affianced in manufacturing and supplying an outstanding array of Hydraulic Track Pin Pusher. Available in various sizes and other specifications, this makes it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts all in the field or workshop. It is the preferred choice of marine, pharmaceutical and food processing industries. It is excellent resistance to fuel, oil, aromatic solvents and alcohols. In addition, clients can avail this Hydraulic Track Pin Pusher from us at reasonable rates.
Features of Hydraulic Track Pin Pusher:
- Capacity : 150 Ton
- Stroke : 150 MM

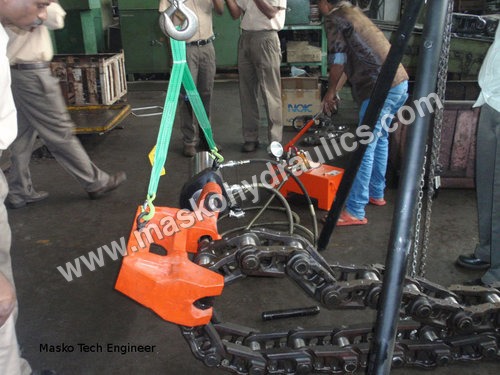

- Maintenance of track chains in workshops and on sites
- Suitable for all brands of Earth Moving Equipments
NOTE: Sprocket Puller attachment is optional
| FRAME SPECIFICATIONS: | ||||||||
| MT - TPP Series: T - Track Link P - Pin P - Pusher | ||||||||
| Capacity | Stroke | Model | Overall Length (A) | Width (B) | Height (C) | Wt. (Approx.) | Suitable Hand Pump | Suitable Power Pack (Optional) |
| Ton | (mm) | MT | (mm) | (mm) | (mm) | (kg) | Model | Model |
| 150 | 150 | TPP 150-150H | 1985 | 360 | 490 | 316 | MTSHP - 2P4 - 2-8000-G-E | MTPPU003104 / MTPPU003103 |
| Pumping Units (Optional) | ||||||
| HAND PUMP SPECIFICATIONS: | ||||||
| Pump Stage | Models | Pressure (bar) | Flow / Stroke (cc) | Oil Tank Capacity | Operation | Weight (Approx.) |
| MT | 1s Stage 2nd Stage | 1st Stage 2nd Stage | (Liters) | (kg) | ||
| Two | MTSHP - 2P4 - 2-8000-G-E | 30 700 | 49 2.8 | 8 | Manual (Rotary DCV) | 20.5 |
| POWER PACK SPECIFICATIONS: | ||||||
| Motor | Oil Tank Capacity | Model | Pump Flow | Max. Working Pressure | Operation | Wt. (Approx.) |
| (HP / Phase) | (Liters) | (L/Min.) | (bar) | (kg) | ||
| 3 / Single-Three | 20 | MTPPU003104 / MTPPU003103 | 1.5 | 600 | Manual (Rotary DCV) | 80 |
| Note: Single Phase - 110 / 230 Volts; Three Phase - 415 Volts | ||||||
| PIN DIMENSIONS: | |||
| Pin Diameter & Length (mm) | |||
| MT - TPP 150-150H | |||
| Dia.: 53 - 70 | Length: 311 - 365 | ||
